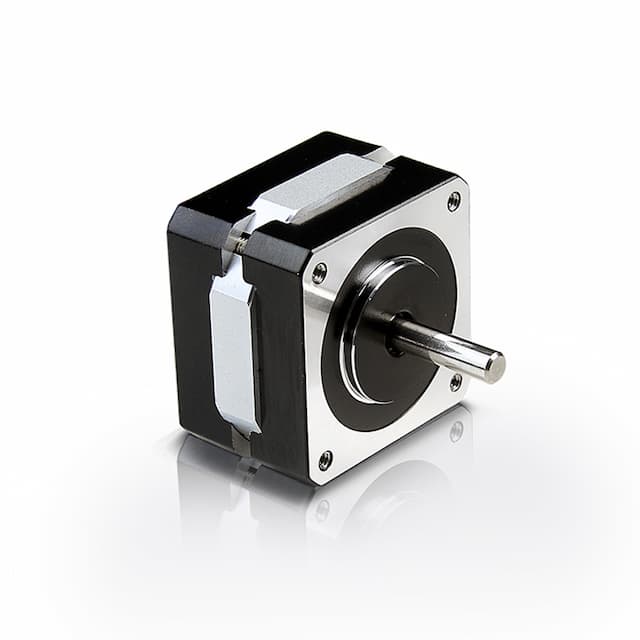

The z417 Series of hybrid stepper motor uses a NEMA 17 (41.80 mm) frame size and a 0.9° step angle making it one of our more popular motor choices.
Team IIGA
January 11, 2022

The z417 Series of hybrid stepper motor uses a NEMA 17 (41.80 mm) frame size and a 0.9° step angle making it one of our more popular motor choices. These motors are also part of our Signature Series known for their ultimate smooth motion and high accuracy.

Z417 SeriesHYBRID STEPPER MOTOR

Features and Benefits:

  • Signature Series Technology for ultimate smooth motion and high accuracy
  • High Step Accuracy
  • Virtually Zero Detent Torque

Specifications:

  • NEMA 17 (41.80 mm) Frame Size
  • 0.9° Step Angle
  • 27.9 to 43.2 mm Length
  • 0.08 to 0.2 Nm Holding Torque
